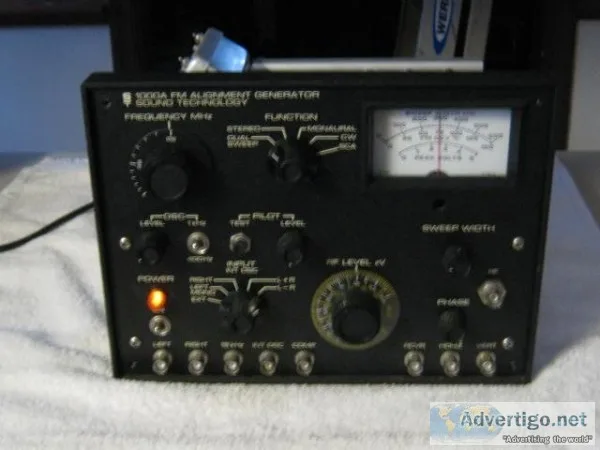

Test Equipment - Sound Technologies FM Signal Generator - 1000A (Catlett, VA)

Test Equipment - Sound Technologies FM Signal Generator - 1000A

ondition excellent make manufacturer Sound Technologies model name number 1000ALocal pick-up preferred (please call first) but will ship at the buyer s expense. No international shipping. Kingston - Sound Technologies 1000A Original price 1600.00. 900.00 or Best Reasonable Offer. There are NO additional probes or other accessories included in this offer. This item of test equipment is used to test troubleshoot repair and align home and high end FM tuners and receivers. This unit has been tested. Everything functions correctly. A reprint manual in a ring binder (which includes an addendum for a circuit board modification which will make the generator more accurate and an AC power cord are included in the sale. Specifications Tuning Range 88-108 MHz 6 1 planetary drive provides better than 10 kHz tuning resolution Drift No adjustment required after station frequency is set following 1 2 hour warmup Total Harmonic Distortion Less than 0.1% THD at 1 kHz 100% modulation Residual FM Less than 75 Hz 20 Hz to 15 kHz Residential 38 kHz Subcarrier Less than 0.5% Output Level 0.5 to 30 000 mV into 50 Ohm load continuously adjustable Output Impedance 50 Ohm VSWR less than 1.3 200 VDC isolation Stereo Separation Greater than 50 dB at 1 kHz
