Pop Channel Machine - Pop Channel Patti Machine (Rajkot)

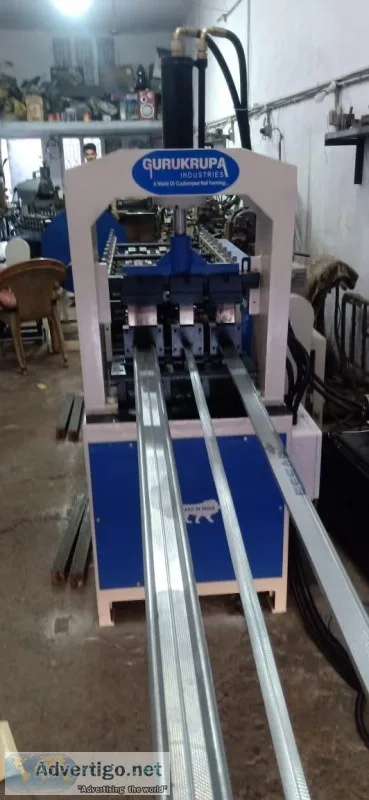

Pop Channel Machine - Pop Channel Patti Machine

Manufactures of Pop Channel Machine Pop Bottom Patti Machine Pop Cross Section Machine Gypsum Partition Roll Forming Machine False Ceiling Roll Forming Machine Stud Making Machine Pop Angle Making Machine Pop Channel Roll Forming Line In Rajkot-Gujarat.De coiler 200 KG cap. Entry Gate with Roll Forming Line with 8 station 1 Gear Boxes & 5 H.P. electrical. Control Panel semi auto Cutting Unit Technical Specifications (Plate body)Maximum sheet width that can be formed 500 mm Maximum sheet thickness in G I Strips that can be formed 0.5 mm Horizontal distance between shafts 165 mm Number of forming stations 8 nos. Vertical station 2 nos. Total HP for Line 7 (ABB) Speed of the machine 5 mt minute Size of machine 1600 x 1200 x 1100 mm Mandrel UncoilerCoil weight 200 KG Max Coil width 200 MM Coil bore 450 MM min 510 MM max dia. Mandrel movement Manually adjusted Back Tension Manually adjusted Entry GateEntry gate will be provided for movement of sheet to roll former.Main BaseThe main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.Mill stands (Station)The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.Roll shaftsThe roll shafts dia. 50 mm will be manufactured from quality steel and will be keyed to locate tooling.DriveThe drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 5 HP
