AMADA CTB-400 CNC Carbide Vertical Programmable Automatic Metal (Fullerton, CA)

AMADA CTB-400 CNC Carbide Vertical Programmable Automatic Metal

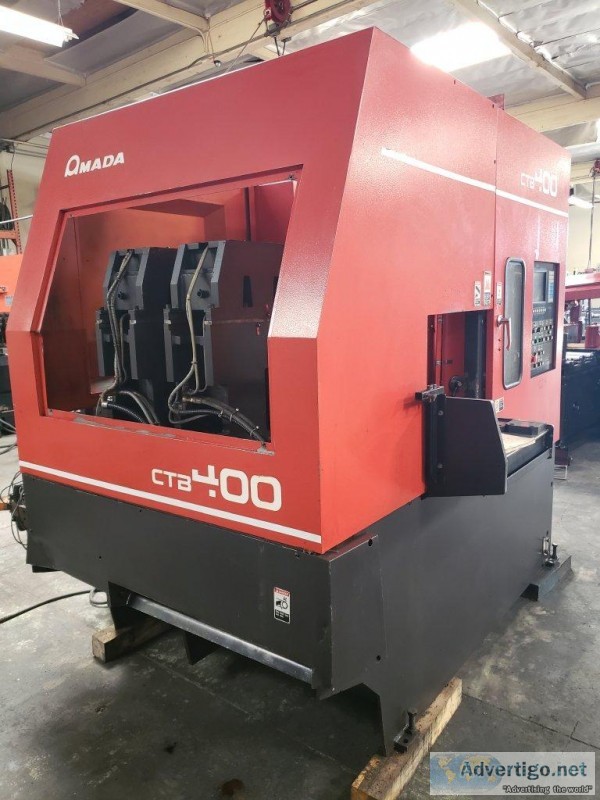

Amada CTB-400 CNC Vertical Bandsaw Description In absolute excellent condition both working & cosmetically. Everything on this machine is in 100% working condition and comes loaded with features.Original Paint This machine was well taken care of. Backed by our 30-day return privilege. Check out our feedback & bid with confidence The Model CTB400 band Saw Machine is developed for high production accuracy and economic cutting.This state of the art machine is specifically designed to use the multifaceted Amada carbide band saw blade.The combination of these two has achieved an excess of 95cm min cutting rates surface finishes in the range of 62 RMS while holding accuracy s well within the - 0.05 mm of diameter.The world s first CNC OPTIMAL CUTTING CONTROL (patent pending) presets feeds and speeds according to material specification. Manufacturer AmadaModel CTB400S N 40850019Year 1997 Specifications Cutting Capacity Round 1.18 - 16 Cutting Capacity Rectangle 1.18 x 0.5 - 16 x 16 Blade Dimensions 15 6 x 0.055 x 1 12 Blade Speed 50-492 ft mn InverterTension Control HydraulicBlade Saw Motor 10 HPHydraulic Pump Motor 2 HPCutting Fluid Pump Motor 1 4 HPWire Brush Motor 1 8 HPPower Supply Voltage AC220 3 PH 60 HzPower Requirement 16.6 kVACutting Fluid Tank Capacity 60.8 gal.Cutting Fluid Pump Type ElectricHydraulic Tank Capacity 9.2 gal.Chip Disposal Chip ConveyorMaterial Index Mechanism Shuttle ViseStroke Front 11.8 Rear 15.7 Number of Cut-Off Pieces 1-999 Machine Dimensions 89 x 88.9 x 90.7 Table Height above Floor 39.4 Machine Weight 9 261 lb Equipped With Anti Vibration Guide RollerAutomatic Blade Guide SettingAutomatic Wire Brush SettingBlade Deviation MonitorFront and Rear Vise (Full Stroke)Inverter Driven Variable Blade SpeedMaterial Separation at End of CutMotion DetectorPreset Auto Trim CutRe-Circulating Coolant SystemSafety InterlocksSelf-Diagnostic CNC In-depth Description Saw Head FrameThe rigid C section frame carries the mountings for the two band wheels heavy duty worm drive gear reducer the band drive motor and saw guide arm mounting supports. The saw head is supported and guided by LM linear bearings. The bearing rail is mounted on the head s vertical center of gravity for better stability.Drive Wheel TransmissionThe drive wheel worm gear transmission is designed and built by Amada to provide high efficiency speed reduction which requires no external cooling to deliver more power to the large diameter drive flange which is mounted on the drive wheel. This flange ensures that this developed torque is transferred to the blade with no strobing enabling the machine to efficiently cut high alloys as well as free machining materials. The entire drive assembly up to the wheel is sealed against chips or cutting fluid to for long maintenance free operation.CNC Saw Feed ControlThe CNC controller has 220 materials pre-programmed and provision for 100 user materials. The controller will automatically vary the feed rate of the saw head for materials with a changing cross section to ensure the fastest cutting time and best surface finish. When using Amada Triple Chip Carbide blade on a changing cross section the cutting rate will be significantly faster than conventional HSS blades with an exceptional surface finish not available with normal band saw blades.Blade Deviation MonitorThe CNC controller constantly monitors the cutting and blade conditions including the twist of the saw blade. The maximum allowable twist is specified for each direction. When either of these values is exceed the preset parameters in the automatic blade runout detector the machine will cease cutting and indicate the reason for stopping.Smart Multiple IndexThe NC micro processor controls the index cycle enabling the machine to cut different lengths in sequence from the same work piece and provides a Smart Multiple Index cycle for cut lengths greater than the single index stroke of 300mm. The index cycle makes full length index passes.Multiple IndexThe machine control has the capability to make up to 2 index passes giving a maximum cut length of 800mm in automatic.Split Front ViseThe work holding vise is split so that it clamps the work piece on both sides of the cutting plane. This additional support in front of the cutting plane minimizes the burr on the cut pieces. will cease cutting and indicate the reason for stopping.
