HAAS VF-2SS CNC 4-Axis Vertical Machining Center loaded with fea (Fullerton, CA)

HAAS VF-2SS CNC 4-Axis Vertical Machining Center loaded with fea

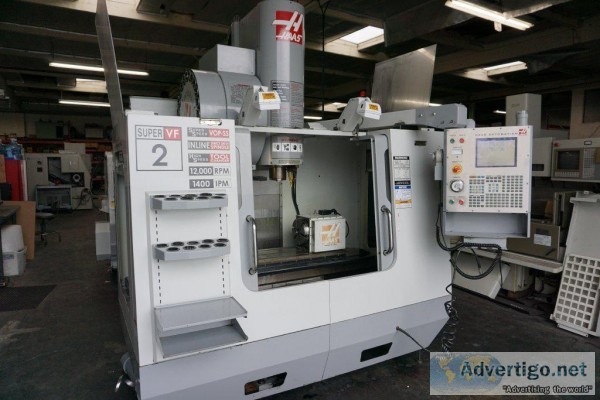

Haas VF-2SS 4-Axes CNC Vertical Machining Center Manufacturer HaasModel VF-2SSS N 45713Year 2005 Specifications Table Size 36 x 14 X-Axis Travel 30 Y Axis Travel 16 Z AxisTravel 20 Spindle Horsepower 30 HPSpindle Speed 12 000 rpmSpindle Taper CT40Side Mount Tool Changer 24 1Spindle Nose to Table min max 4 to 24 Max Table Load 3000 lbsRapid Travels 1400 ipmMachine weight 8000 lbsDimensions 94 x 96 x 102 Please also watch the video on youtube s www.youtube.com watch v 4H9WD4d09NM& feature youtu.be Equipped With Haas HRT-250 Brushless 8.25 4th Axis Rotary16MB Expanded Memory20-Position Coolant SpigotCoordinate Rotation & ScalingMacrosFloppy DriveM19 Spindle Orientation P & R CodesChip Auger & ConveyorAC Servo Drives30-HP Vector Drive SpindleHigh Speed Side Mount ATCOverhead lighting optionRigid TappingCoolant SystemRemote Table jog In-depth Description This Haas VF-2 vertical machining center has 30 x 16 x 20 (762 x 406 x 508 mm) travels and is built utilizing vibration-damping cast-iron components. The Haas VF-2SS is a rugged small-footprint vertical machining center that yields reliability and accuracy in a small-framed machine. This VF-2 has a 40-taper cartridge spindle driven by a 30 hp vector drive.
