For Sale Techno CNC Router System (Astoria, OR)

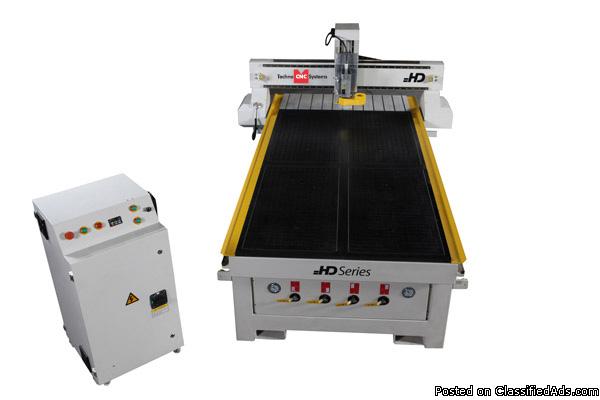

For Sale Techno CNC Router System

This is for the largest model they offer. The 5 X 10 surface area. This machine has both the vacuum pump as well as a seperate suction pump that we purchased but never used. This machine is still in new condition as it was only used a handful of times. We have well over 35 000 invested into it between the unit itself and the extra suction pump we purchased. Here is a little about the machine direct from the company s website. EXTRAORDINARY VALUE & PERFORMANCE ... Since 1986 Techno has provided economical CNC cutting solutions. Our engineering creativity has always yielded affordable quality equipment. The new HD Series promises to follow suit. Our engineers have designed a product that can be manufactured abroad allowing us to sell this machinery at a very economical price. The new HD Series machine features all steel construction precision linear rails and bearings precision helical racks on the X and Y axes with a ballscrew Z axis drive. In addition the system includes brushless micro-stepper motors and controls with a very easy-to-use hand-held controller. The hand-held controller is so user-friendly that setup installation and training is completed through our self-taught step-by-step manuals. We guarantee you will be cutting parts the same day you connect power to the machine 4 HP HSD high-frequency collet spindle Maintenance free high precision brushless stepper drive motors Automatic tool calibration easy and accurate Z zero position for single and multiple tool changes 4-Zone vacuum table Easy to use hand-held micro stepper controller Open architecture works with all industry standard CAD CAM software Base Frame The base frame is fabricated from heavy-duty tubular steel that is welded precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine. Gantry The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting. Gantry Support (Uprights) The Gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors bearings belts and wiring harnesses. Drive Train Assembly The Techno HD Series CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system and this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately. Drive Motors The HD Series CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance therefore reducing any maintenance downtime. Spindle The HD Series machine comes standard with a 4 HP HSD high frequency collet spindle. These precision spindles require no maintenance use industry standard ER collets fully programmable speeds from 6000 to 18000 RPM and comes complete with vacuum hood and wrenches. Tool Calibration Automatic tool calibration pad allows for easy and accurate Z zero position for single and multiple tool changes through the program. Control Panel Functions The main functionality for the HD Series is accessible on the front panel of the enclosure. Your tools can be placed right on top and the hand-held controller conveniently hangs on the side. Electronics All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required the customer can easily navigate the cabinet. In addition the cabinet serves as a work bench for the tools required. Vacuum Table The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles. Main Power Switch Emergency Stop Power Enable Power Disable Spindle Inverter Readout Vacuum Controls USB Port CONSTRUCTION FEATURES Hand-held Controller The hand-held controller is the heart of the operational system. This hand-held controller redefines the phrase easy-to-use . Customers can be up and running the same day power is connected to the machine. Every controller has very easy-to-read -understand and -execute commands. The setup introduction manual provides information that will have users cutting parts in minutes. Vacuum Pump Main Power Switch Emergency Stop Power Enable Power Disable Spindle Inverter Readout Vacuum Controls USB Port CONSTRUCTION FEATURES Hand-held Controller The hand-held controller is the heart of the operational system. This hand-held controller redefines the phrase easy-to-use . Customers can be up and running the same day power is connected to the machine. Every controller has very easy-to-read -understand and -execute commands. The setup introduction manual provides information that will have users cutting parts in minutes. (1) 10HP TEFC (totally enclosed fan-cooled). Rotary Vane Vacuum Pump Available in 230 460V 50-60Hz 3 ph or single phase Comes standard with motor starter vacuum gauge primary and secondary filter check valve and all necessary plumbing to connect to router Rated for 173 CFM 25 Hg 81dB for very quiet operation
