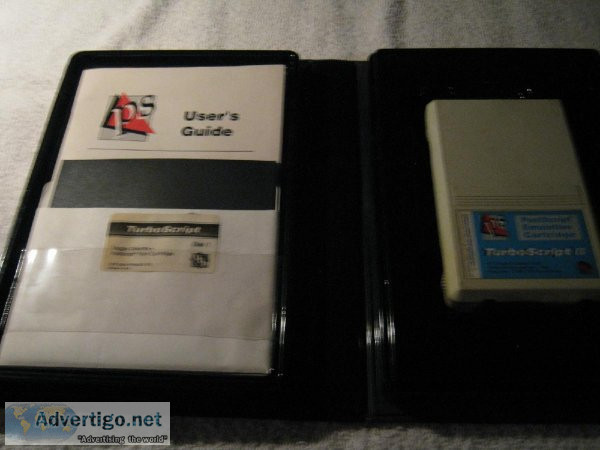

UPD User&rsquos Guide and Turboscript&trade Postscript Emulator (Catlett, VA)

UPD User&rsquos Guide and Turboscript&trade Postscript Emulator

Local pick-up preferred (please call first) but will ship at the buyer s expenseKingston Books 15- IMG_7859 75.00 or Your Best Reasonable OfferIllustrated Table of Contents (in brief) .. (page3)INTRODUCTION About the Turboscript Cartridge ..4INSTALLATION Step 1 Install the Cartridge ..10 Step 2 Choose the Driver ..11FRONT PANEL OPERATION Printing Menu ..12POSTSCRIPT AND PCL ..14PRINTING POSTSCRIPT FLIES ..16SOFTWARE SETUP INSTRUCTIONS Windows & Windows Applications ..17TROUBLESHOOTING Before You Call ..25ADDITIONAL CHARACTERS ..30INDEX ..34About the Turboscript CartridgeCongratulations on your purchase of UDP s Turboscript cartridge. Your PostScript emulation cartridge gives you 47 fonts from which to choose. You will be able to create and print full-page graphics at 300 dpi. And your output can be stretched shaded and rotated to any angle.The Turboscript cartridge uses highly acclaimed NimbusQ fonts and the versatile Freedom of the Press interpreter from CAI. It supports Adobe Postscript and is Type I compatible. Which this means to you is very simple. Ypu get the latest-of-the-art technology in your PostScript emulation cartridge Memory RequirementsYour LaserJet printer comes with 512K of memory in the printer. You will need an additional 1MB of memory to use the Turboscript cartridge (1.5 MB total). If you purchased the package with the UDP memory board included install the memory board before you use this cartridge. If you need extra memory contact you local dealer for a UDP memory expansion board.PostScript FontsPostScript is a Page Description Language (PDL) that allows you to emulate a PostScript printer such as the Apple LaserWriter II NT. It supports all PostScript commands. This gives you the ability to create complex graphics and text as weel as scale outline fonts to any size and rotate them to any angle.Every character in a PostScript font is mathematically drawn from an outline thus the name outline fonts . Because of this feature each character can be treated as a graphic and stretched skewed rotated shadowed and so on. All fonts are contained in the cartridge and require no downloading from you printer.TurboscriptThe 47 fonts that are available in this cartridge are listed below. .. (page 6)Printer Compatibility .. (page 7)There are two Turboscript cartridges. Make sure you are using the correct version for your printerTurboscript II Works with the HP LaserJet II onlyTurboscript III works with the following printers HP LaserJet IIP HP LaserJet IID HP LaserJet IIIOutput InterfacesThe Turboscript cartridge supports parallel (Centronics) serial (RS-232-C) and other I O boards. We cannot guarantee that all specialized I O boards will work with the cartridge.Port SharingThe Turboscript cartridge supports printer port sharing. Users can access several printers that are connected to one computer port.Postscript DriversA driver is a software program used to interface your computer with your printer and font cartridges. Most software programs today provide PostScript drivers. To use the fonts on this cartridge your application must include a postscript driver. To access the Turboscript install the cartridge in your LaserJet printer and select the PostScript printer definition (driver) from the choices given by your software application..TurboScript .. (page 8)All About Fonts (in brief)A FontFont FamilyTypestyleSymbol SetStylePoint Size .. (page 9)PitchFixedProportionalOrientationDriver softwareStep 1 Installing the TurboScript Cartridge ..(page 10)Step 2 Choose a printer Driver .. (page 11) Front Panel Operation .. (page 12)Printing MenuConfiguration Menu .. (page 13)Paper Sizes and Changing PaperPostscript and PCL .. (page 14)The Utility Diskette (Included with the cartridge)Toggle between Postscript and PCL ..(page 15)Printing Postscript Files .. (page 16)Software Setup Instructions .. (page 17)TurboScript .. (page 18)Changing the Job Timeout Option ..(page 19)Microsoft Windows and applicationsMicrosoft Word ..(page 20)Changing the timeout parameters The Utility Diskette..... (page 14)You can select either mode via the control panel or from your computer through the software utility whichever is more convenient. The utility diskette provided with your TurboScript cartridge contains four files in the TOGGLE directory. Copy the directory contents on to your hard disk using the DOS command COPY A TOGGLE . C (or an appropriate drive location).With the TOGGLE utility installed you can switch between Postscript and PCL without leaving your computer.Toggle between Postscript and PCLFrom the utility diskette To access Postscript type the following at the DOS prompt C TS (and press the< Enter Key> )To access PCL type the following at the DOS prompt C LJ (and press the< Enter Key> )From the printer control panel To toggle from PostScript to PCL Take the printer OFF-LINE. Press the MENU button several times to get the Exit Cart message on the LCD display and press ENTER. For the II and IID hold the MENU button and tap enter to reset. Your printer is now in the opposite mode. NOTE The utility software is not compatible with all intelligent printer spoolers and buffers. If you are using one of these devices you may need to use the control panel to switch between PostScript and PCL.CAUTIONSwitching to Postscript or PCL mode causes the printer to reinitialize which deletes any font downloaded into memory. When downloading fonts remember to use compatible fonts for the mode currently recognized.Ventura Publisher .. (page 21)CHANGING THE TIMIOUT PARAMETERS .. (page 22)Ventura PublisherWordPerfect..... (page 23)TurboScript .. (page 24)Defining a PostScript PrinterCHANGING THE TIMEOUT PARAMETERS (WordPerfect)WordStar 2000 Trouble Shooting .. (pages 25 through 29)Additional Characters .. (pages 31 through 33)Paperback 34 pages
