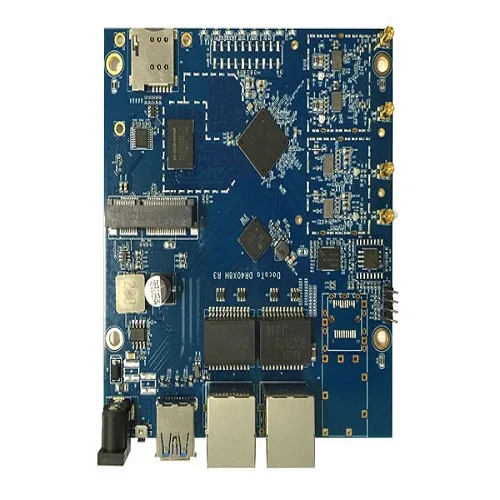

Dr40x8h

200 USD

www.wallystech.com IPQ4018/IPQ4028 802.11AC 2x2 2.4G&5G Wave2 IPQ4018/IPQ4028 2x2 2.4Ghz 2x2 5Ghz Industrial-grade Featuring with industrial-grade IPQ4018/IPQ4028 chipset Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module Support 4.940GHz to 5.825GHz Frequency Range; Support 2.400GHz to 2.482GHz Support 2 x 5G MMCX Connectors and 2x2.4G MMCX 20MHz/40MHz/80MHz Bandwidth Support 11ABGN/AC RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals Absolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48 V Operating Temperature Range -40 to + 60 ?C Storage Temperature Range -65 to + 105 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) % Hardware Specifications Symbol Parameter CPU IPQ4018(Quad core ARM Cortex A7 at 710 MHz) Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps Gigabit Ethernet 2xRJ45 SFP connector 1xSFP fiber module connector (optional) 3G/4G connector 1xminipcie 3G/4G connector support with two sim card USB connector 1xUSB 3.0 connector POE 24V~48V passive POE DC Jack 24V~48V power supply ROHS Compliance YES Dimension 115mm x 105mm x 16mm Nor Flash 2MB~32MB Nand Flash 128MB DDR 256MB Radio TX Specifications(5180MHz-5825MHz) Operating Mode Data Rate Power Tolerance

27-12-2023 UNITED STATES, Milpitas,

Price: 200 USD

Category: Computers & Networking

E-mail Tian: +8617366272175
