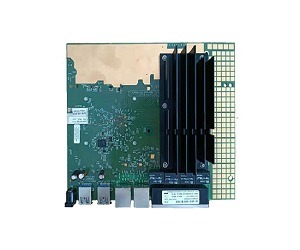

Dr8072a(hk09) (Milpitas, )

Dr8072a(hk09)

www.wallystech.com Features Qualcomm Atheros IPQ8072A AR Quad Core CPU On-board 5GHz radio, up to 2475 Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash On-board 2.4GHz radio, up to 1147Mbps physical data rate Support 11ax TX Beamforming Support 11ac/ax MU-MIMO DL and UL Support OFDMA DL and UL Tri-band support with 5G SBS (4x4/5GHz ) + 4x4/2.4GHz Supports Dynamic Frequency Selection (DFS) Absolute Maximum Rating Parameter Rating Unit Operating Temperature Range -20 to + 70 ?C Storage Temperature Range -40 to + 90 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) %   Hardware Specifications Symbol Parameter CPU Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU CPU Frequency Derived from Qualcomm Atheros AP.HK09 System Memory 1x 512MB, DDR4 2400MHz 16-bit interface Frequency Range 2.412~2.472GHz,   5.150~5.825GHz MiniPCIe Slot 1x MiniPCIe Slot with PCIe 3.0 Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Environmental Temperature Operating: -20?C to 70?C,   Storage: -40?C to 90?C Flash NOR Flash: 8 MB  NAND Flash: 256MB Wireless On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain  On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain  8x U.FL Connectors Reset Buttons 1x S/W Reset Button DC Jack Input 1x DC Jack Connector: 12V   Interface 4x 1Gbps Ethernet Port,   2x 2.5Gbps Ethernet Port  2x USB 3.0 Port  1x JTAG 20 Pin Connector  1x Serial Port 4 Pin Connector LED 2x RGB LED Indicators Power Consumption TBD
