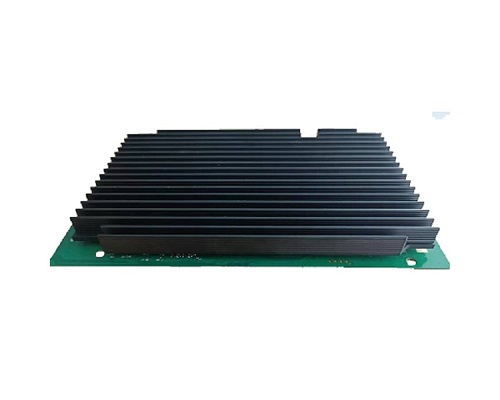

Dr6018 v4

www.wallystech.com Qualcomm-AtherosIPQ6010 Quad-core ARM 64bit A53 @1.8GHz Processor  1GB DDRL3L System Memory  32MB NOR Flash, 256MB NAND Flash  Supports Dynamic Frequency Selection (DFS)  2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate  2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate Support: QUECTEL RM500Q-GL Support: QCN9074 WiFi 6E Card Absolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48 V Operating Temperature Range -40 to + 70 ?C Storage Temperature Range -45 to + 105 ?C Operating Humidity Range 5 to + 95 (non-condensing) %    Hardware Specifications Symbol Parameter CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port NGFF Slot M.2 (NGFF) ?E Key? Socket with MiniPCIe 3.0 SD Card Slot 1x SD Card Slot USB /header 1x USB 2.0 Port POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax,  max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax,  max 20dBm per chain 4 x MMCX Connectors Bluetooth CSR8811 BLE 4.2 Nor Flash 32MB Nand Flash 256MB DDR 256MB~512MB Dimension  185mm x 116mm

23-12-2023 UNITED STATES, Milpitas,
E-mail Tian: +8617366272175
